TTS-8
8" Tabletop Sealer
Additional Options
The TTS-8 has an 8" in. (20.32 cm) seal length and is designed to seal multiple tubes and bags of various sizes and materials. It features a compact, portable design and an adjustable, stainless steel shelf with
height gauges to allow for easy changeover of various tube heights. The TTS-8 is equipped with dual digital timers to allow for precise and easy timing control for straightforward operation while being safe
and reliable. It is configurable with various options to fit your needs including a built-in compressor, dual (bi-active) heating elements, and different seal widths upon request. The TTS-8 can seal up to 3,500
tubes per day and is ideal for laboratories, research facilities, R&D, pharmacies, and quality control groups. The TTS-8 is designed and manufactured in the USA.
Notes:
- Please include tube specifications or notify of shipment of tube samples in order notes or through an email to orders@uhseal.com including your order ID. Failure to do so will delay your order. Otherwise, a standard tube tray with 3 cavities of 1 3/8" diameter will be sent in your order.
-
We offer a free seal and burst test report if you're interested in seeing the results of your tubes on the TTS-8 before you buy. Contact us for more information.
No video is available at this time.
| Features |
|---|
| Seals multiple tubes or bags at once for greater productivity* |
| Adjustable Heat & Cool Times with increments of one-tenth of a second |

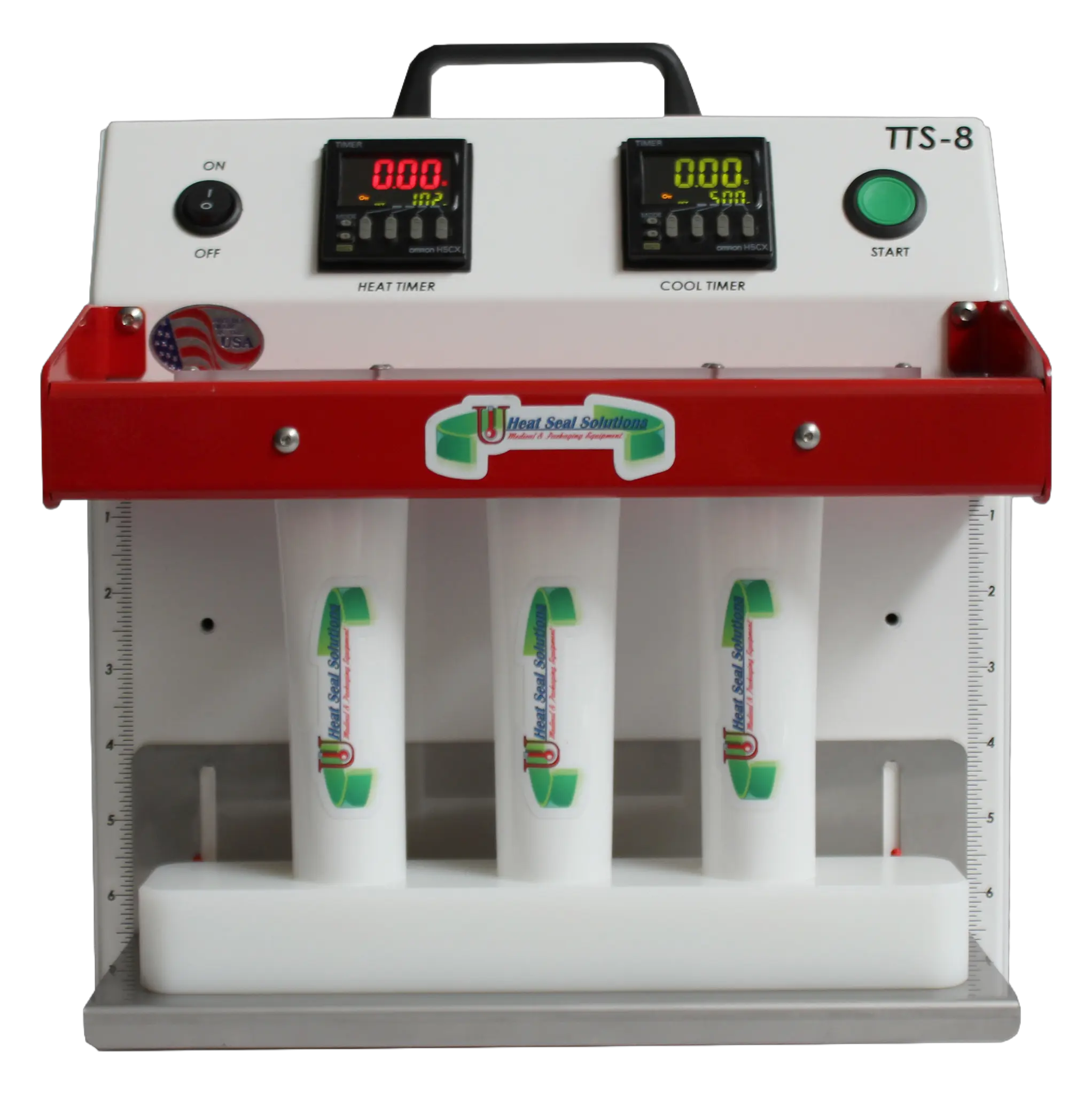

| Dual Digital Timers |
| Heavy Duty Powder Coated Steel Frame |
| Adjustable Stainless Steel Shelf with Height Indicator Ruler |
| Dual Cylinders for even seal pressure across the length of the seal |
| Delrin Bushings allows for no metal shavings and quieter operation |
| Optional Dual Heating Elements provide faster cycle times, longer consumable lifespan, equal seal appearance, and allows a wider variety of materials to be sealed |
| Optional Built-in Compressor allows for greater portability and easier operation |
| Internal Pressure Regulator if not equipped with Built-In Compressor |
| Cleanroom Ready |
| Safety Features |
|---|
| Transparent Safety Guard |
| Anti-Vandal Start Switch |
| Finger Detection Sensor will not start the seal cycle if a finger is detected between seal jaws |
| Optional Emergency Stop Button |
| Standard Specifications |
|---|
| Seal Length: 8 in. (20.32 cm) |
| Seal Width & Heating Element: Single 1/4" in. (6.35 mm) Heating Element (Dual Heating Elements and other widths available) |
| Seal Type: Thermal Impulse Seal |
| Physical Dimensions: 12.25" W x 14.25" H x 14.5" D (31.12 cm W x 36.2 cm H x 36.83 cm D) |
| Weight: 45 lbs (20.41 kg) |
| Power Requirements: 115V 10A with Built-in Compressor |
| Air Requirements: .04 SCFM @ 60 psi (If not equipped with Built-In Compressor) |

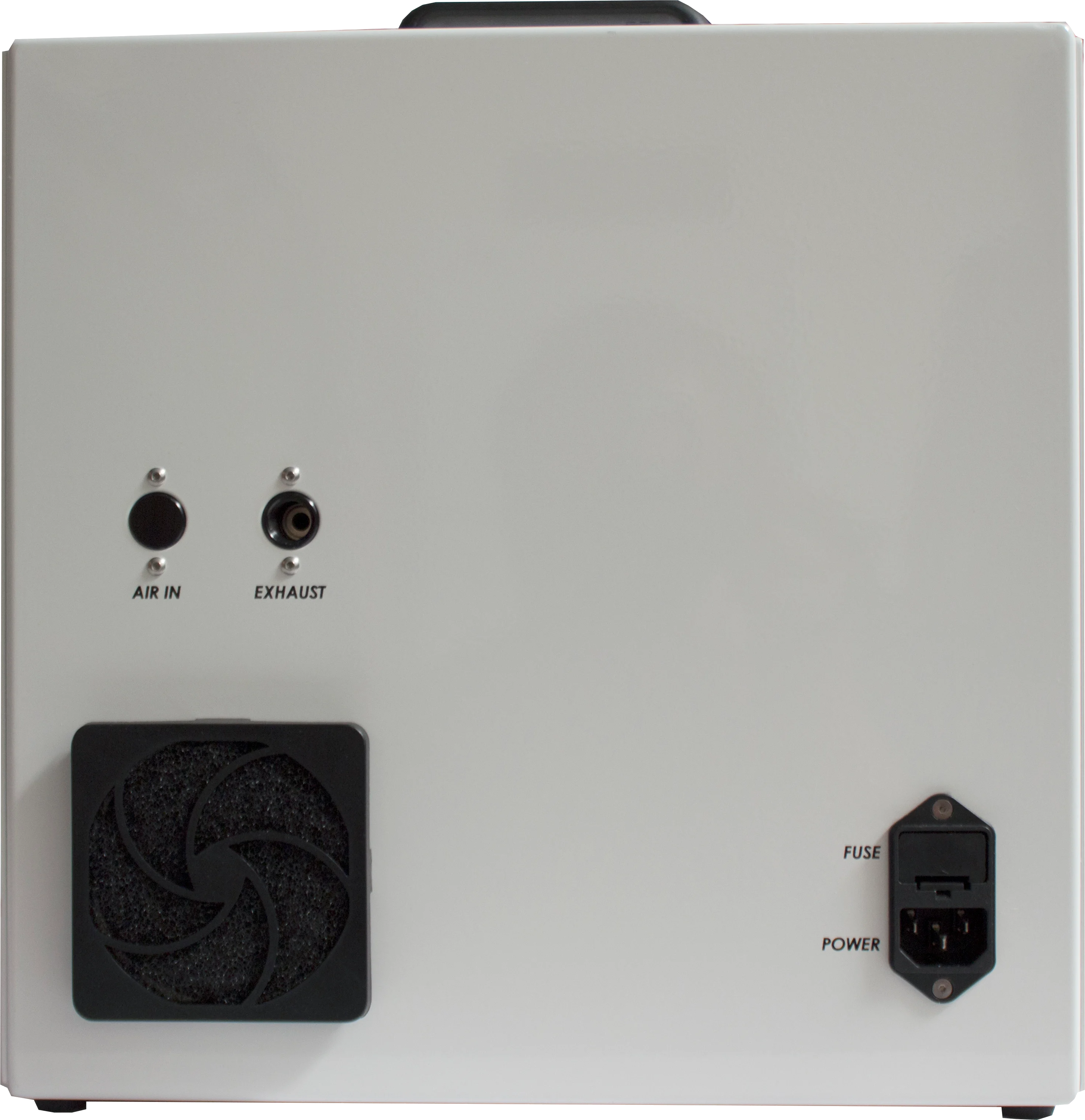

| Air Supply Port: 1/4" NPT Female Thread (If not equipped with Built-In Compressor) |
| Exhaust Port: 1/4" NPT Female Thread |
| In the box: TTS-8 Tabletop Sealer, Detachable Power Cable, One (1) Custom Tube Tray, Heating Element Kit(s), User Manual |
| Limited Warranty: Two (2) years Labor, One (1) year Parts |
